Features
- These are Solenoid Operated Directional Valves of high pressure, high flow and low pressure drop, the features of which can be materialized by employing a powerful wet type solenoid and the rational flow channel design.
3. Connected to the common terminal, the 50HZ and 60HZ can overcome the disturbance of varied frequencies.
4. Both plug-in solenoid easy to changeable coil.
5. The light beaming direction of movement is distinctive.
特性
- 湿式电磁设计、做动平稳无冲击、噪音值低。
- ISO标准、安装尺寸具有绝对互换性。
- 50Hz、60Hz共用端子结构,解决不同周波之扰。
- 插入型电磁设计,分解组立非常容易。
- 灯光指示做动方向,明确清楚。
Specifications性能参数
型号Model |
最大流量Max.flow (L/min) |
最高使用压力 Max. pressure ( Mpa) |
最高切换频率 Max. change over frequency (次/小时)cpm |
|||
直流DC | 交流AC | A、B、P | T | 直流DC | 交流AC | |

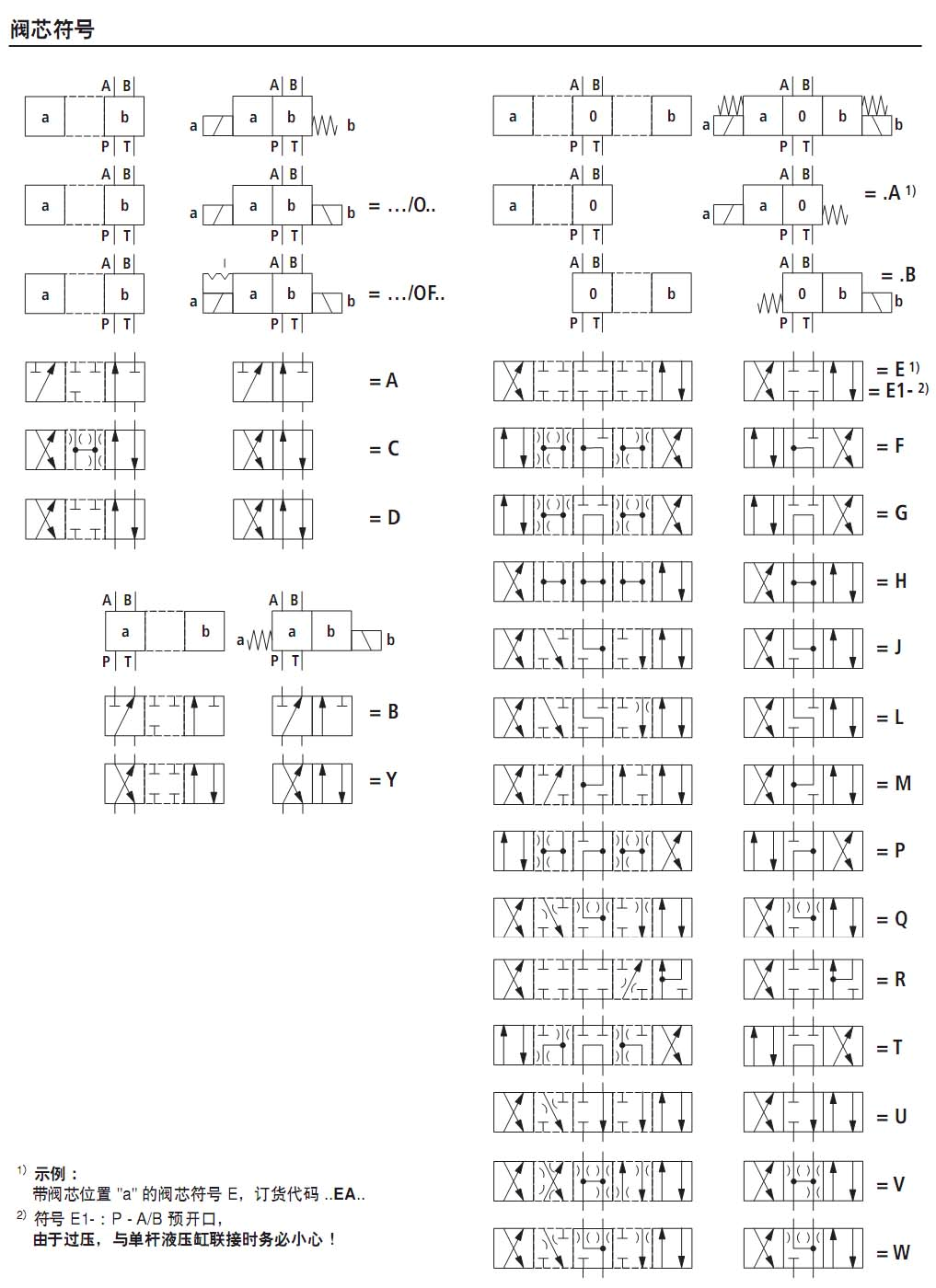

4WE6E※ 4WE6G※ 4WE6H※ 4WE6J※ 4WE6L※ 4WE6D※ 4WE6C※ 4WE6D/OF※ ……… |
80 | 60 | 35 |
21 (直流)DC 16 (交流)AC |
15000 | 7200 |
